Preserve the node states in a custom TreeView

TreeView 의 Node을 펼치고 닫는 부분을 기록하였다가 보여주는 예제가 있습니다. 조직도를 출력할때 노드를 사용자가 열고 닫고 할때 이를 다음에 다시 프로그램을 실행하였을때 보여줄 필요가 있습니다. 고객은 불편한걸 싫어 하거든요. 이때 쓸만한 예제입니다. 전 Dictionary 에 넣은 데이타를 xml로 로컬에 기록해두었다가 다시 보여주었습니다. 아래 예제는 Dictionary 간 실행시 존재하고 체크박스를 체크하느냐 마느냐에 따라서 갱신할때 트리의 상태(펼침, 닫힘)을 잃어버리거나 가져오게 됩니다. 아래설명에 상세히 나와 있어요^^



링크 : http://www.codeproject.com/KB/tree/NodeStatesTreeView.aspx
파일 :



Background

I worked a few weeks in an application that required the data to be displayed in a hierarchical structure that exemplifies and makes it easier to understand the structure of this information in particular.

Since the data is ever changing, and the UI must not be closed, and instead it must to be refreshed every certain time lapse, the default TreeView that is shown in the ToolBox of Visual Studio is out of the question because as it's well known, it doesn't preserve states in case the UI should be refreshed, and what happens when UI is refreshed is that it returns to its original state when it was first drawn. Of course, you can do some "stuff" in the code to manage this behavior, but it tends to be tedious and boring, what is traduced in waste of time.

Here is a brief explanation...

TreeView (System.Windows.Forms.TreeView)

The TreeView, as it's known, is a control that helps to manage hierarchical structures on a simple view of tree; it has some basic behaviors that can make it more easier to bind data, show XML hierarchical structures, etc., but the most interesting thing about this kind of controls is that you can improve them and make them do exactly what you need them to do.

Inheritance

Inheritance is a way to compartmentalize and reuse code by creating objects that have attributes and behaviors that can be based on previously created objects.

The inheritance allows us work with simple controls like TreeView by taking advantage of their basic behaviors and lets us improve the control by adding new members to control some behavior that we need from the control.

In Visual C#, we can write a class definition that inherits from TreeView like:

public partial class customTreeView : System.Windows.Forms.TreeView

Development

Because of the above, I decided to develop my own TreeView that preserves the states of its nodes in many hierarchy levels, to make it a bit more flexible and comfortable for the application.

I have used an implementation of the original TreeView class, but added some new properties and methods that can help us use it to preserve our TreeView state.

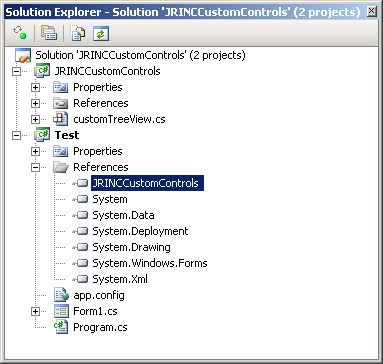

A Control Library...

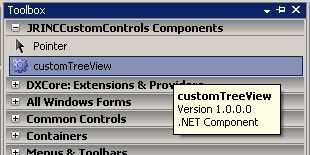

I developed a Control Library that contains our new customTreeView as I named it. The library can be referenced in any project as a .dll component or can be added into the ToolBox in Visual Studio.

The Test Project...

In this project, our new behavior is being tested. You can test the way it works, side by side a normal TreeView, and the way you can implement this in your own application.

Now a brief explanation of the members added to the new customTreeView...

Public Custom Properties

PreserveTreeState

Basically, this property allow us to to tell our custom TreeView if we want to preserve or not its tree state.

private bool _preseveTreeState;

public bool PreseveTreeState
{
    get { return _preseveTreeState; }
    set { _preseveTreeState = value; }
}

TreeState_dic

This is a System.Collections.Generic.Doctionary<string, bool> that allows us to store our tree state, and it depends on the PreserveTreeState value. True to store the tree state, false otherwise.

private Dictionary<string, bool> treeState_dic = new Dictionary<string, bool>();

public Dictionary<string, bool> TreeState_dic
{
    get { return treeState_dic; }
    set { treeState_dic = value; }
}

Public Custom Methods

SaveTreeState()

We must call this if we want to save our tree state. It fills the TreeState_dic object, and depends on the PreserveTreeState value. True to store the tree state, false otherwise.

public void SaveTreeState()

RestoreTreeState()

We must call this if we want to restore the last saved state of our tree. It uses the TreeState_dic object information to redraw the last saved state, and depends on the PreserveTreeState value. True to restore the tree state, false otherwise.

Definition:

public void RestoreTreeState()

Private Custom Methods

saveTreeState(TreeView tree)

Internally, initialize the process to save our tree state. It begins to fill our TreeState_dic object.

private void saveTreeState(TreeView tree)

...where tree is the current customTreeView.

saveTreeState_level2(TreeNode tNode, string parentDicKey)

It is a recursive method that creates the next keys in our TreeState_dic object for the next hierarchy levels.

private void saveTreeState_level2(TreeNode tNode, string parentDicKey)

...where tNode is the current node of customTreeView, and parentDicKey is the parent dictionary key of the current node inside the TreeState_dic object.

restoreTreeState(TreeView tree)

Internally, begins to search in our TreeState_dic object, for each of our tree node's values for the IsExpanded property.

private void restoreTreeState(TreeView tree)

...where tree is the current customTreeView.

restoreTreeState_level2(TreeNode tNode, string parentDicKey)

It is a recursive method that searches for the next hierarchy levels of our TreeState_dic object to load each value to the treeview.

private void restoreTreeState_level2(TreeNode tNode, string parentDicKey)

...Where tNode is the current node of customTreeView, and parentDicKey is the parent dictionary key of the current node inside the TreeState_dic object.

Conclusion

As a final idea, I must say that was only a little thing that you can improve in a TreeView control. There are so many behaviors that you can develop from this and other controls to get better performance for your applications, so make the best, and always look for a way to improve your code...

License

This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)

About the Author

JRINC
